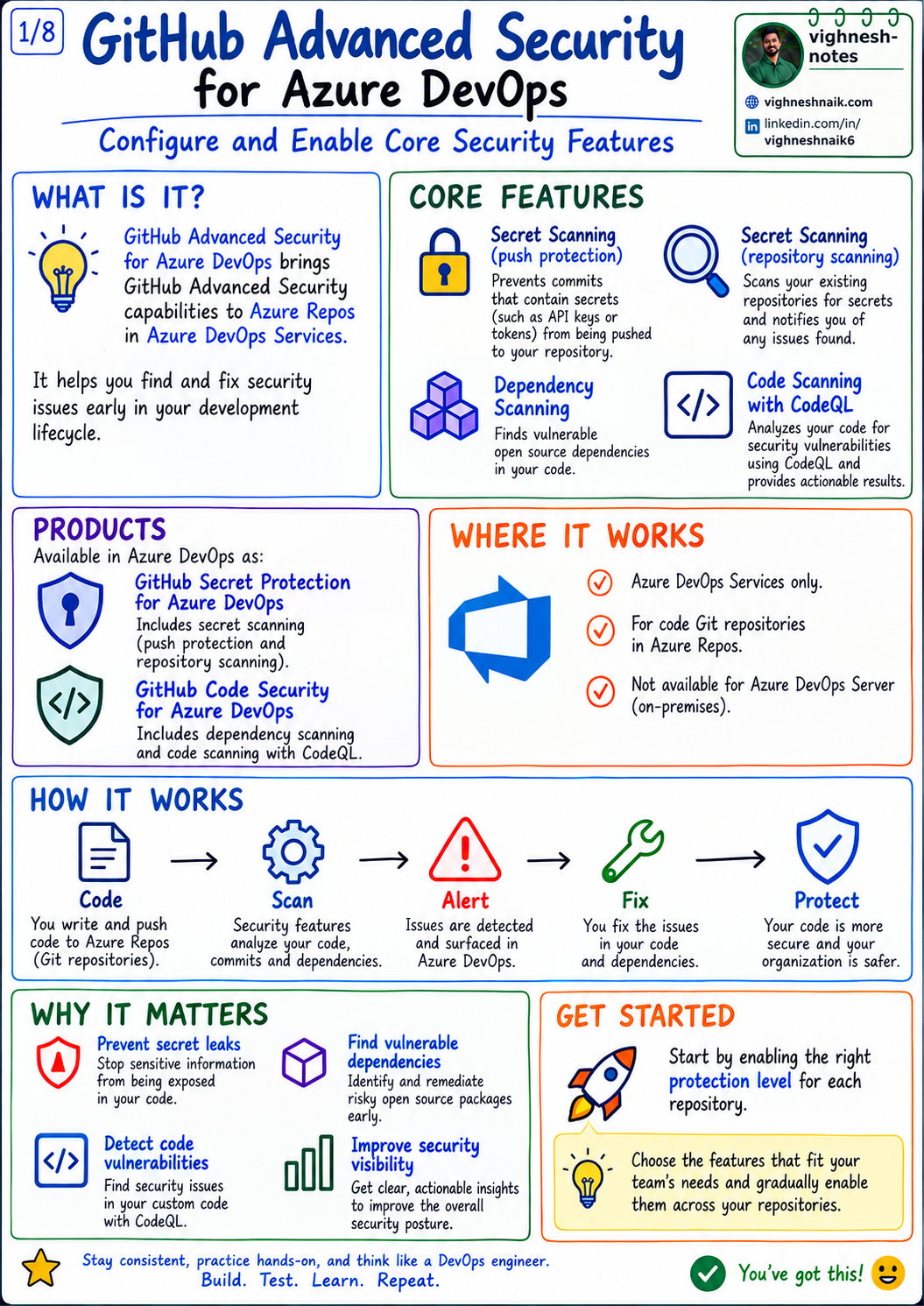

Page 1 of 8
GitHub Advanced Security for Azure DevOps — Overview
Vighnesh Notes · DevSecOps
GitHub Advanced Security for Azure DevOps
A visual implementation guide to Secret Protection, dependency scanning, CodeQL, pull request security checks, and secure repository onboarding in Azure DevOps.
I created this eight-part visual guide to make GitHub Advanced Security for Azure DevOps easier to understand and implement. The series covers the available security products, prerequisites and permissions, repository/project/organization onboarding, secret protection, dependency scanning, CodeQL code scanning, pull request annotations, status checks, and practical rollout guidance.
These notes are designed as a study and implementation aid. Production environments should always be validated against current Microsoft Learn documentation, licensing, permissions, supported repository types, agent requirements, and organizational security policies.
Topics covered
Eight views from secure onboarding to rollout.
- GitHub Advanced Security for Azure DevOps — Overview
- Prerequisites & Permissions
- Enable Advanced Security
- Secret Protection Setup
- Dependency Scanning
- Code Scanning with CodeQL
- Pull Request Security Checks
- Implementation Playbook & Key Takeaways
Visual-note gallery
Eight complete portrait pages, in implementation order.
Download PNG

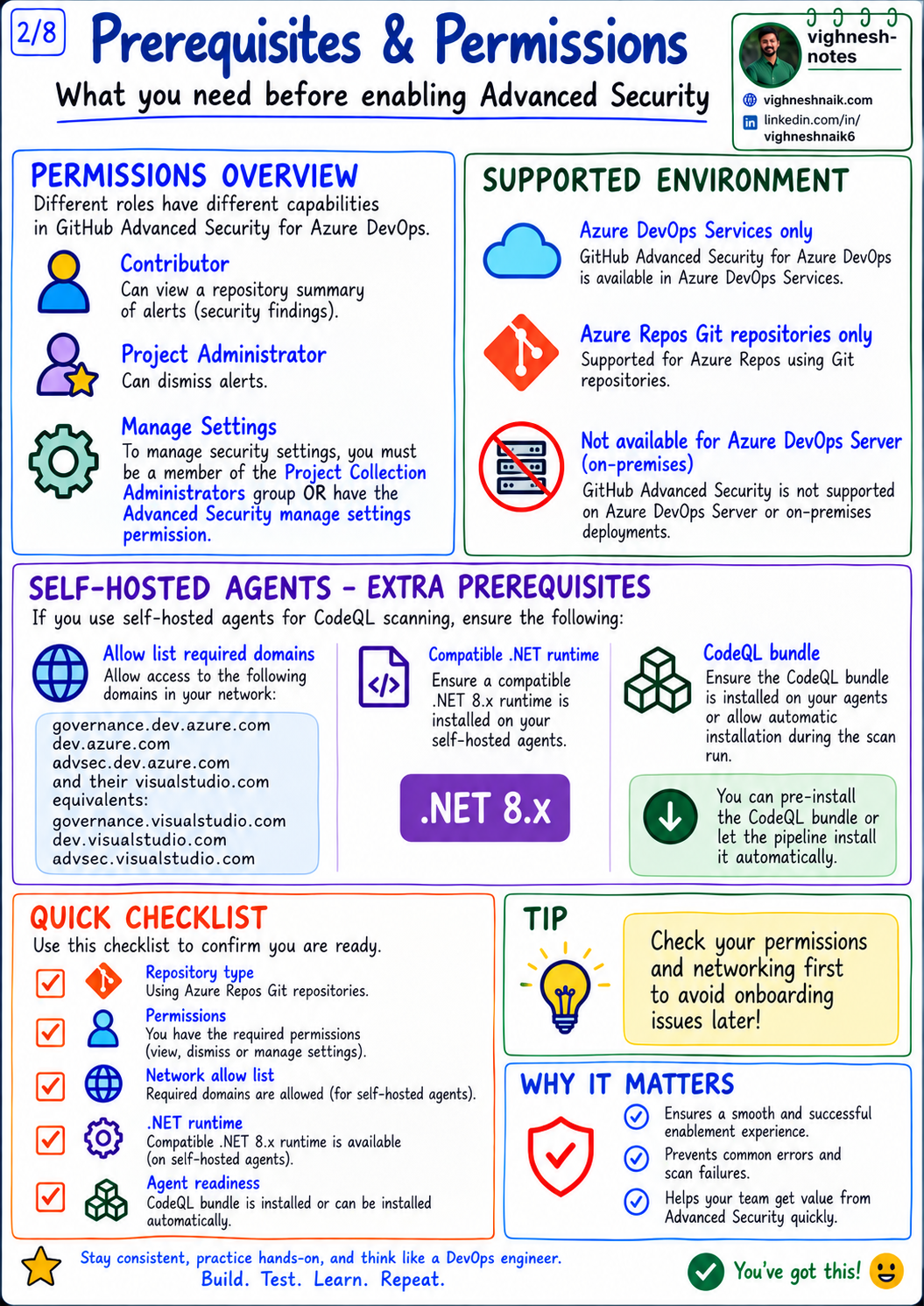

Page 2 of 8
Prerequisites & Permissions

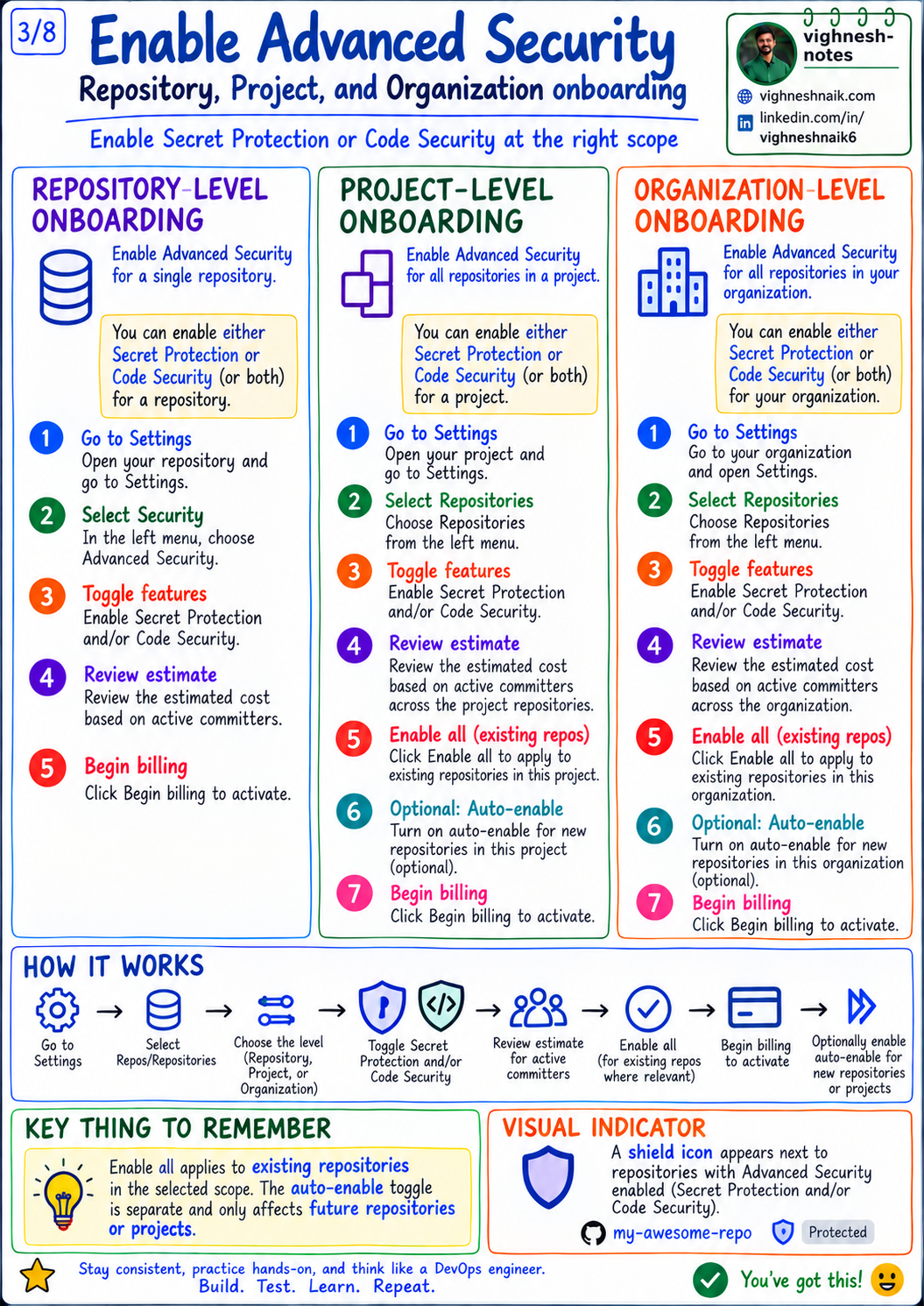

Page 3 of 8
Enable Advanced Security

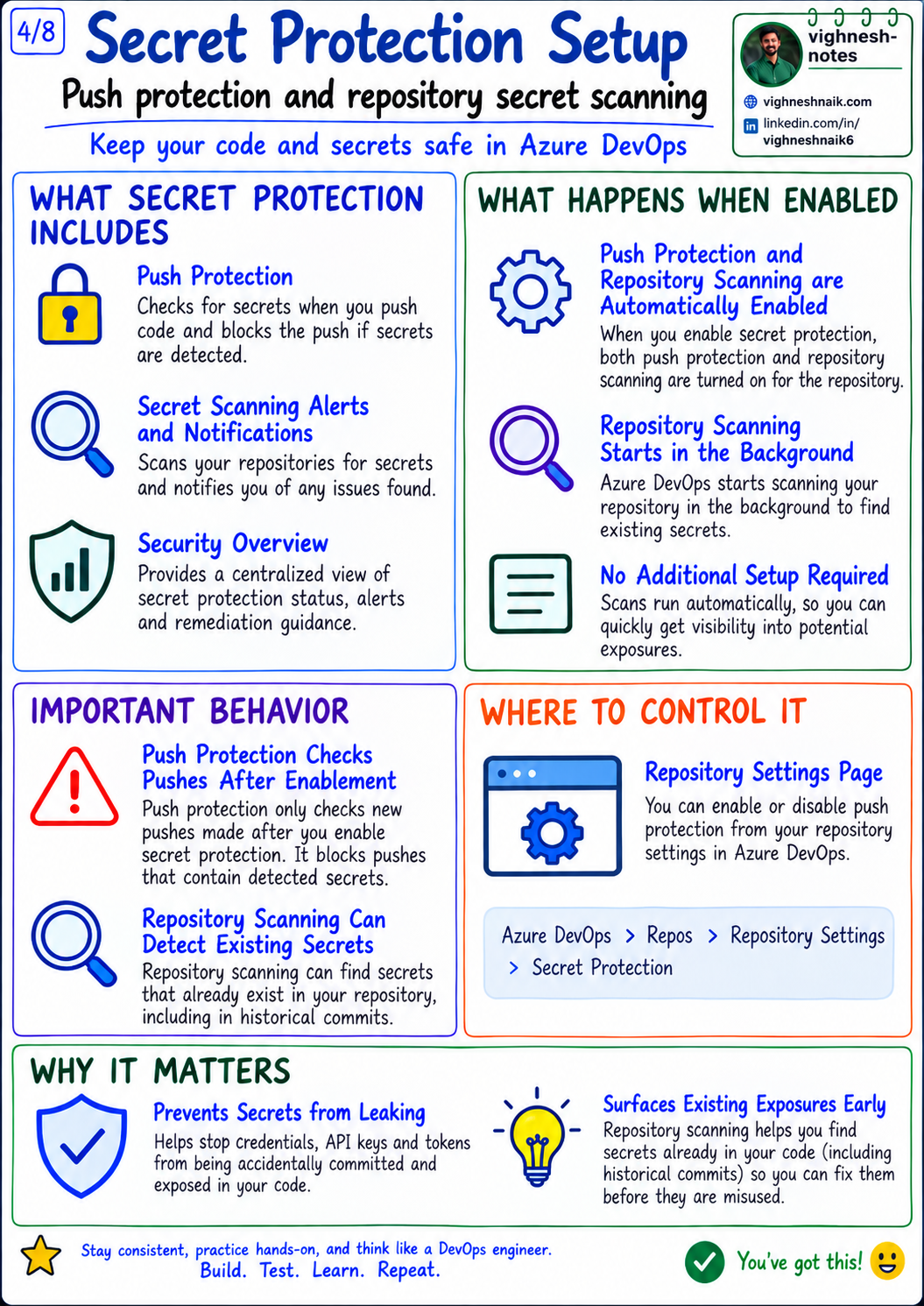

Page 4 of 8
Secret Protection Setup

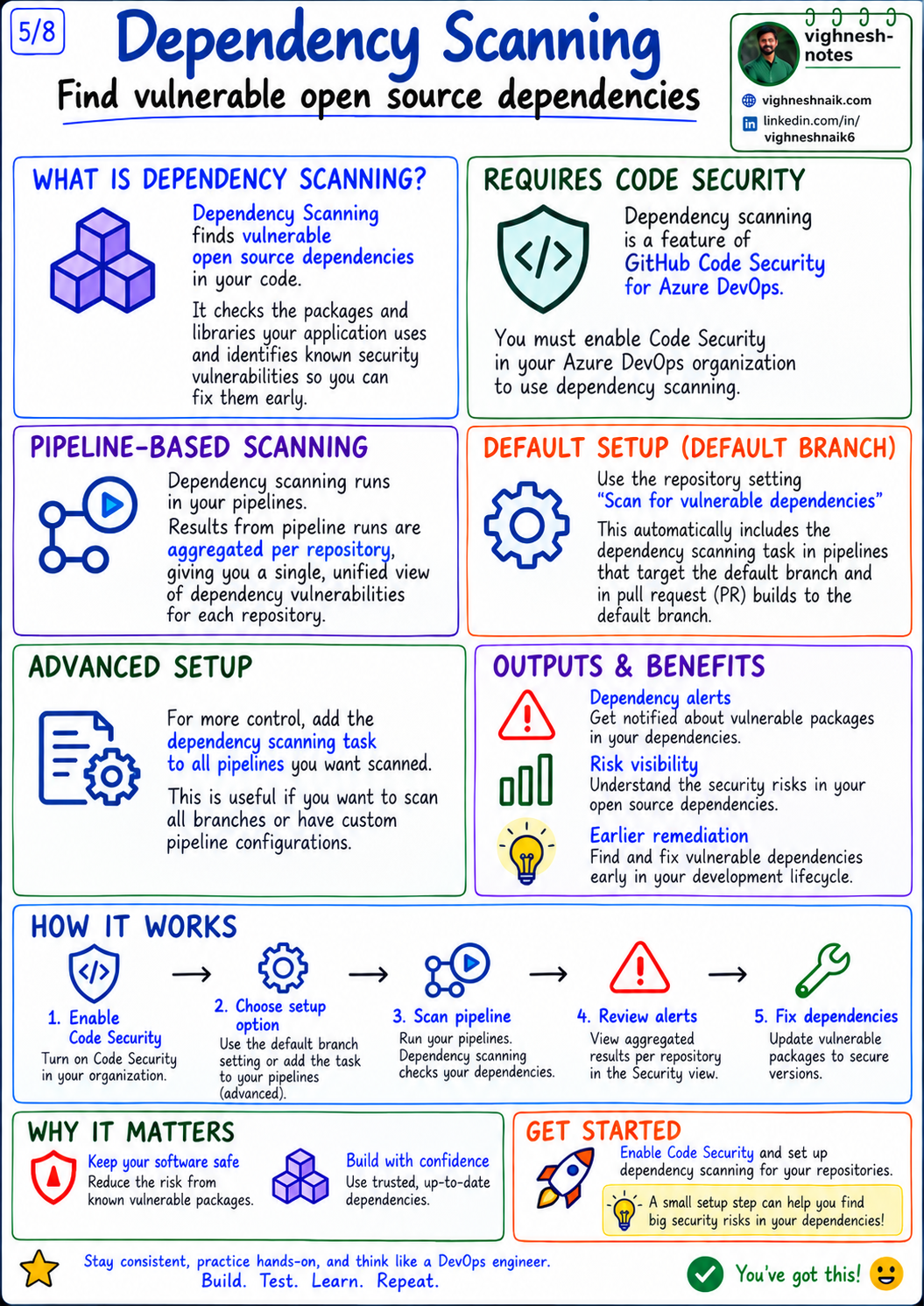

Page 5 of 8
Dependency Scanning

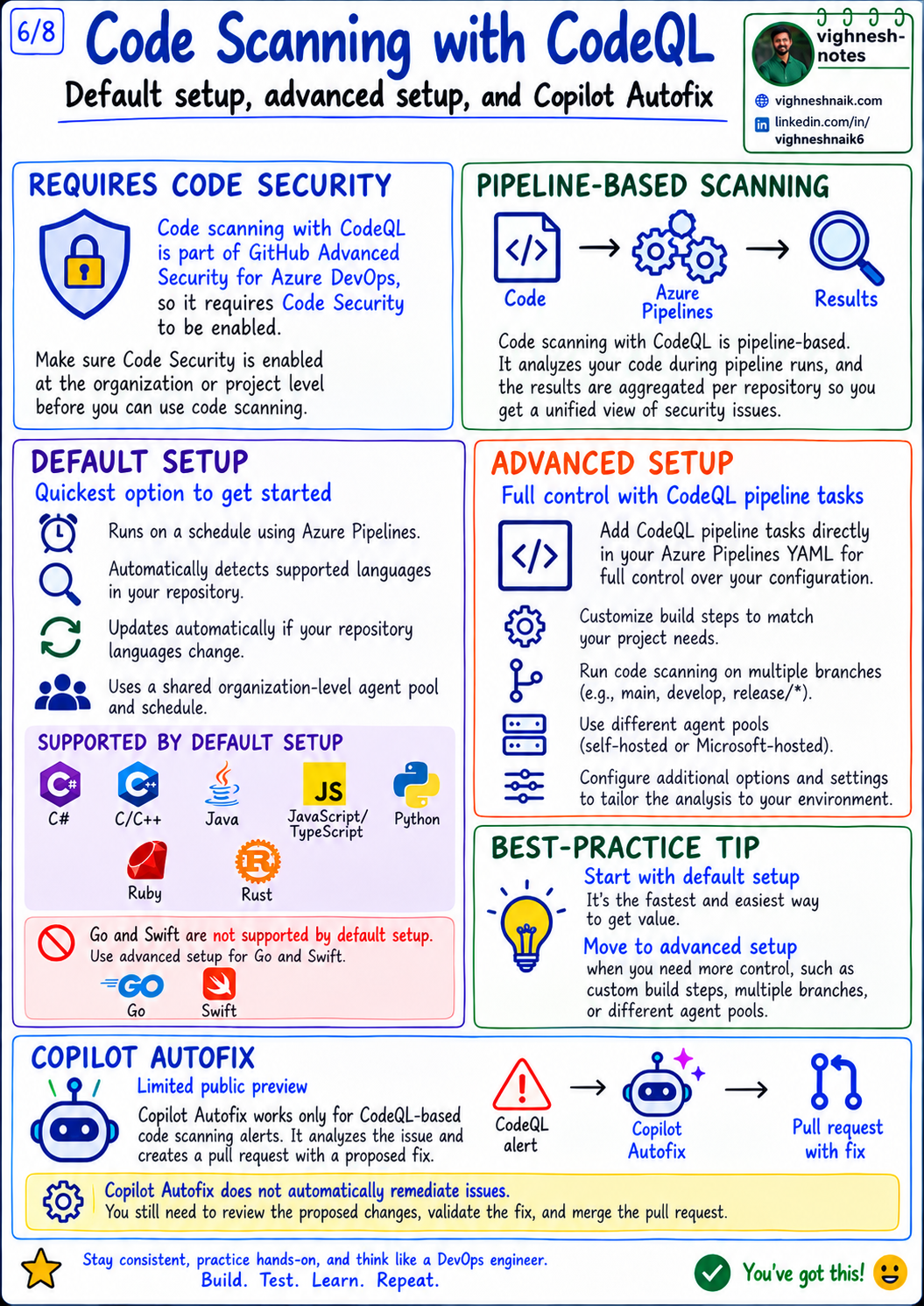

Page 6 of 8
Code Scanning with CodeQL

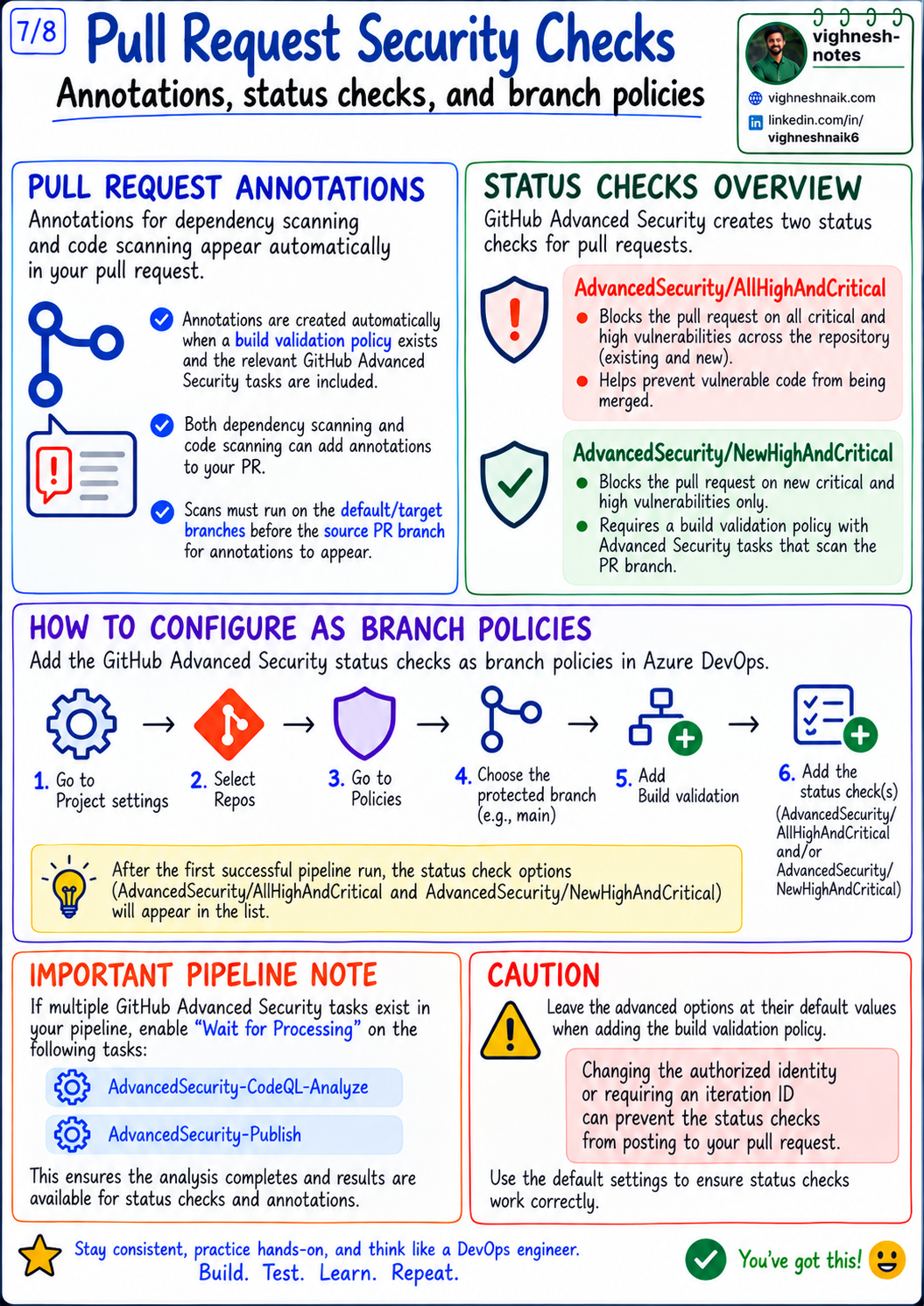

Page 7 of 8
Pull Request Security Checks

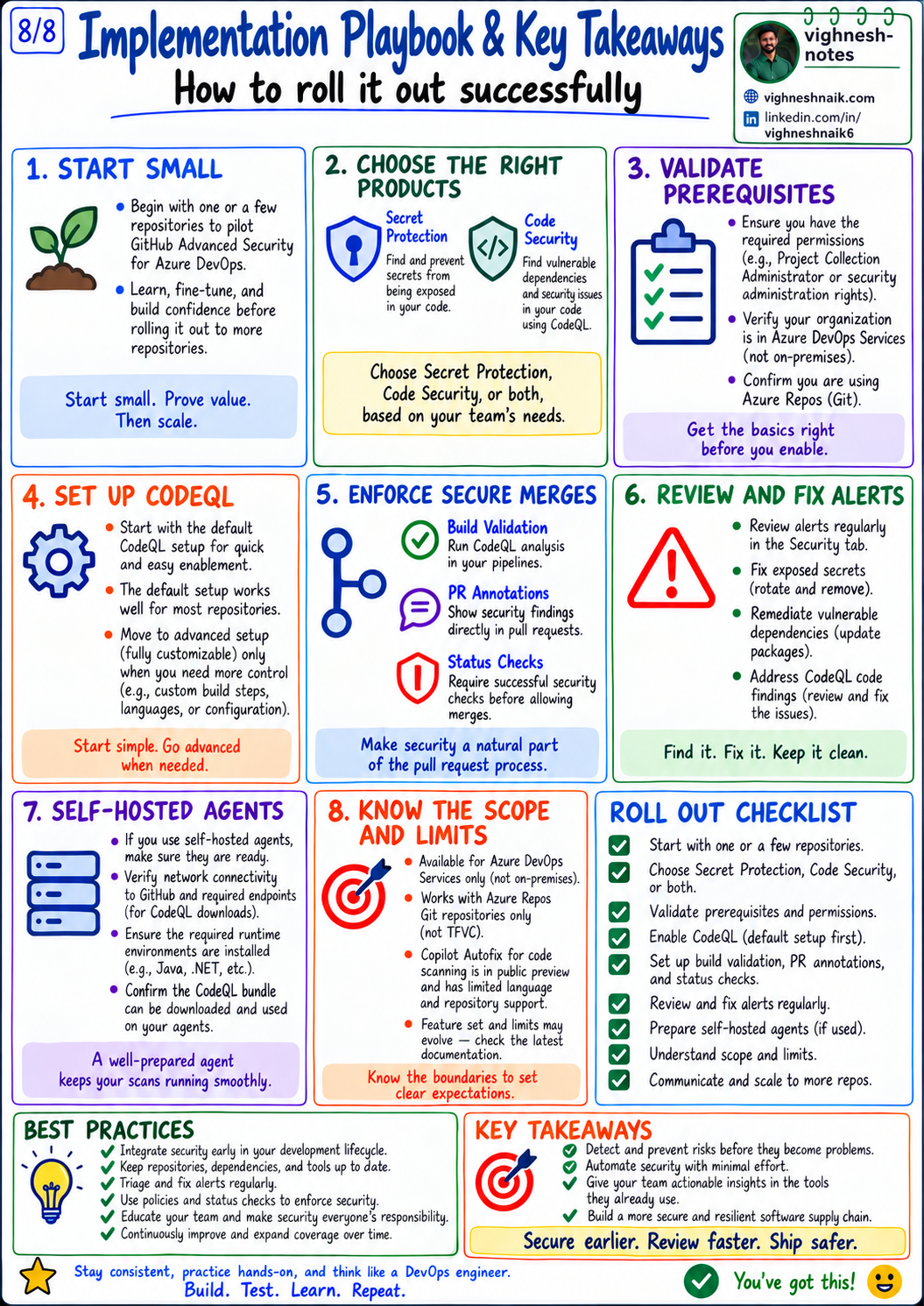

Page 8 of 8
Implementation Playbook & Key Takeaways
About this resource
A practical map for Azure Repos security rollout.
Why I created these notes
GitHub Advanced Security for Azure DevOps brings several DevSecOps capabilities into Azure Repos, but the setup spans product enablement, repository onboarding, permissions, pipeline-based scanning, CodeQL, secret protection, pull request annotations, and branch policy enforcement. I created this visual series to make the implementation flow easier to understand and use as a practical reference.
What this project demonstrates
This resource demonstrates Azure DevOps security knowledge, DevSecOps architecture, secret protection, software supply chain security, dependency scanning, CodeQL static analysis, pull request governance, branch policy design, security automation, and technical documentation.
Implementation notes
Current behaviors to validate before rollout.
- Available for Azure DevOps Services and Azure Repos Git repositories, not Azure DevOps Server or on-premises deployments.
- GitHub Secret Protection for Azure DevOps includes push protection and repository secret scanning.
- GitHub Code Security for Azure DevOps includes dependency scanning and CodeQL code scanning.
- Advanced Security can be enabled at repository, project, or organization scope.
- Dependency scanning and code scanning are pipeline-based.
- CodeQL default setup is the recommended starting point for most repositories.
- Pull request annotations and Advanced Security status checks can enforce secure merges.
- Copilot Autofix for CodeQL alerts is preview functionality where available and proposes fixes rather than remediating code automatically.
Source and attribution
Official Microsoft documentation
These independent visual notes organize implementation concepts documented by Microsoft Learn. Microsoft and GitHub did not author, sponsor, review, or endorse this resource.
Microsoft Learn · Configure GitHub Advanced Security for Azure DevOpsIndependent visual notes
These are independent visual notes created by Vighnesh Naik and are not official Microsoft or GitHub documentation. Microsoft, Azure, Azure DevOps, GitHub, GitHub Advanced Security, CodeQL, and related product names are trademarks of their respective owners. Product capabilities, licensing, preview status, supported languages, permissions, and configuration steps can change. Always verify current information through official Microsoft Learn documentation before implementing security controls in production.
- Version
- 1.0
- Published
- September 2026
- Format
- Eight-page visual implementation guide
- Brand
- vighnesh-notes
